Description

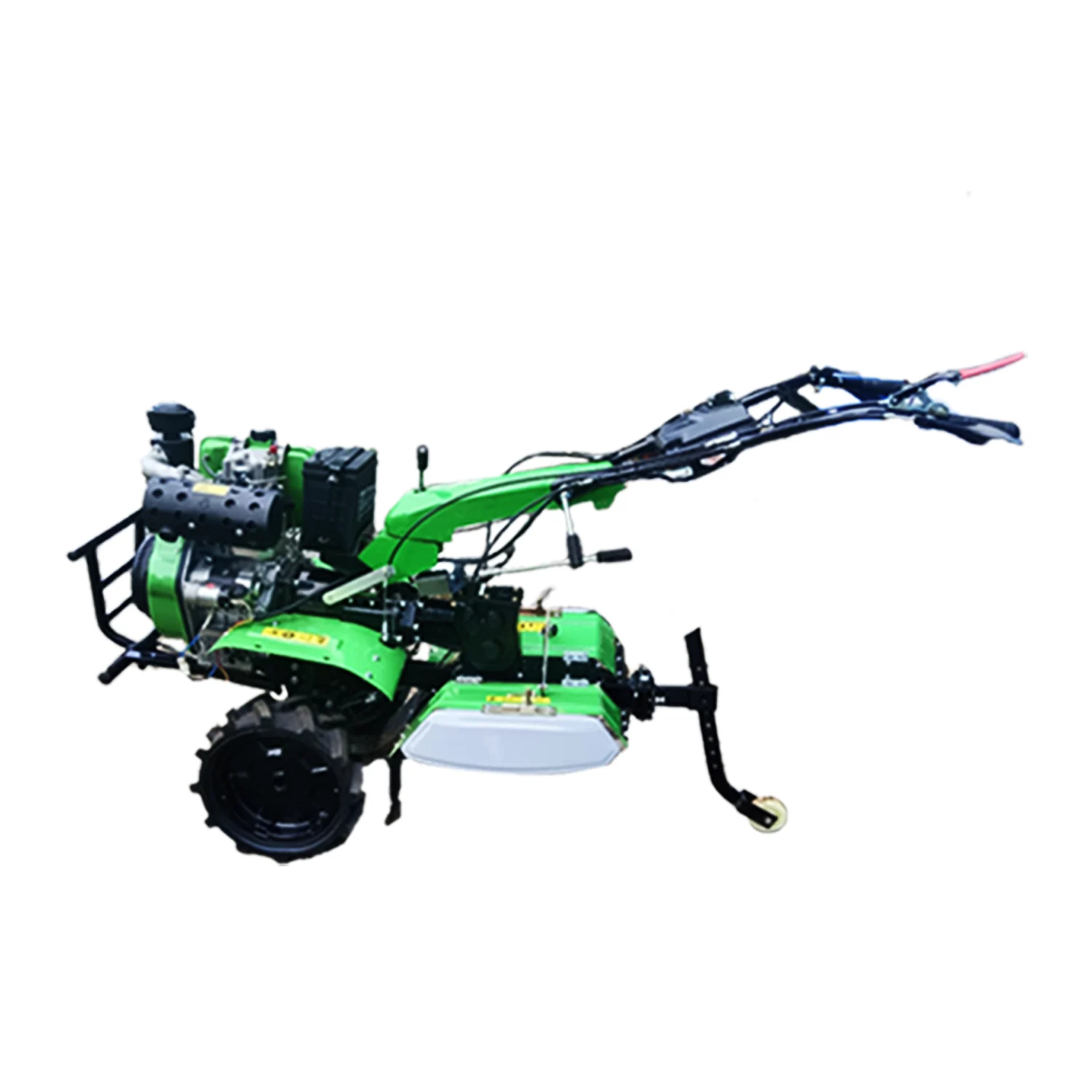

SSG10DS Diesel Power Tiller is a high-performance 10HP agricultural machine designed for heavy-duty farming operations. Powered by an 188F diesel engine with 456cc displacement, it delivers strong torque and reliable output for tough soil conditions. The electric start system, PTO-driven transmission with steering clutch, and cast iron gearbox ensure smooth operation, durability, and long service life. With adjustable working width, heavy-duty rotary blades, and solid tyres, the SSG10DS is ideal for commercial farming, land preparation, and intensive cultivation tasks.
| Specification | Details |
|---|---|
| Model | SSG10DS |
| Engine Type | 188F Diesel Engine |
| Starting System | Electric Start |
| Engine Displacement | 456 cc |
| Maximum Power | 10 HP @ 3600 RPM |
| Air Filter Type | Oil Bath |
| Transmission Type | PTO Driven with Steering System Clutch |
| Gearbox Type | Cast Iron Heavy-Duty Gearbox |
| Tyres | 4.00-8 Solid Tyres |
| Rotary Shaft | 32 mm Hexagonal Output Shaft |
| Working Width | 4.5 ft (Adjustable) – Centre Rotary |
| Rotary Options | 1 ft Ditching / 2 ft Back Rotary Tilling |
| Number of Tynes (Centre Rotary) | 24 / 32 / 40 (Adjustable) with Trimming Discs |
| Number of Tynes (Back Rotary) | 18 Dry Land Blades |
| Ditching Blades | 1 Set of Ditching Blades with Rear Wheel |
| Safety Provisions | Silencer Guard, Fender Guard, Mud Flap, PTO Cover |
